The integration of the controller results in the following advantages:

  • Very compact design despite integrated controller
  • Easy installation and maintenance free
  • Software for easy setup
  • Internal stroke limitation
  • Adjustable current limit
  • Internal heat protection
  • Industrial interface MODBUS RTU on RS485
  • Adjustable start ramp
  • Adjustable stop ramp
  • Plug & Play solution with iConnect-Box

The integrated control is offered in 6 versions.
All have one MODBUS-RTU system based on RS485:

  • SDB (SINGLE DIRECTION BASIC)
    Simple control to move the actuator up and down. In combination with the iConnect-Box, it develops into a plug-and-play solution. Just plug in and run.

  • SDH (SINGLE DIRECTION HALL)
    Compared to the SDB controller, this controller also emits a Hall signal

  • SDP (SINGLE DIRECTION POSITION)
    This controller also outputs an analog position signal (0V-5V or 0V-10V)

  • SPP (SINGLE POSITION POSITION)
    With this controller, a specific position can be controlled via an analog voltage signal

  • SBS (SINGLE BUS STATUS)
    This controller is operated completely via Modbus-RTU RS485

  • MDO (MULTIPLE DIRECTION OVERRIDE)
    With this controller, up to 8 actuators can easily be operated synchronously



FEATURES:

  • Stroke: 50, 100, 150, 200, 250, 300, 350, 400, 500 and 750mm (others on request)
  • Materials:
    Motor and actuator tube are powder coated steel or stainless steel
    Piston rod is stainless steel
    Front and rear brackets are aluminium or stainless steel
  • Protection class: IP66 (standard), harsh environment (according to IP68 and IP69)
  • Temperature:
    Operation: -20°C to +50°C
    Storage: -40ºC to +70ºC
  • Cable: Cores: 2 x AWG16 + 6 x AWG 26, Ø = 6,8 mm, black jacket, Molex Mini-Fit Jr. 8 pin or similar.
  • Max. static load/Self locking force: 18.100N, depending on stroke length for push-applications
  • Duty cycle: Max. 10% or 2 minutes in use followed by 18 minutes rest


SPEED AND FORCE

24VDC (28VDC) - Current at maximum load: 11,5A

 Gear ratio D E F G H
 Force (dyn. push and pull) [N] 1900 4300 6600 8100 10000
 Speed at maximum load [mm/s] 26 12 8 6 5
Max. load limited for stroke length > 400mm: 5000N

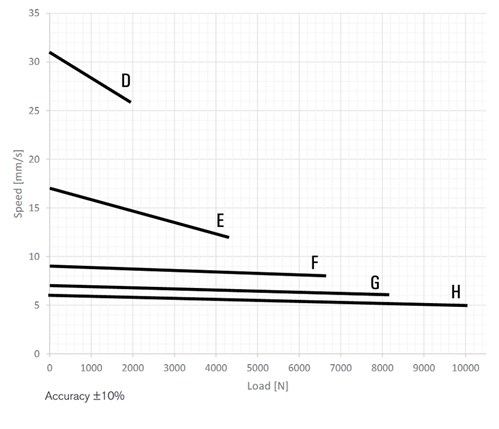

SPEED/FORCE

Nopeus voima e i60

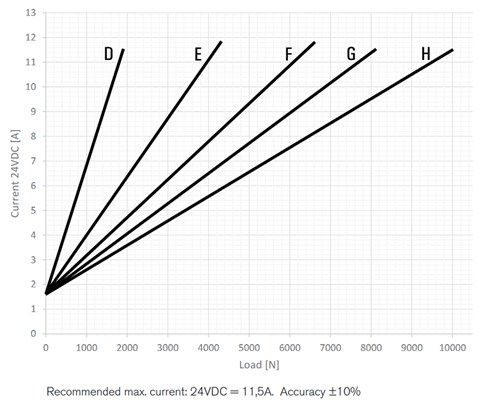

FORCE/CURRENT

Voima virta e i60
Mitat i60



 EL Clevis rear         UL/EN60.601          Harsh environment          Emergency lowering/spline
 Stroke + 358*          - +15 +25 +31/+10



*If stroke >400mm: EL+25mm (not Harsh Environment version)
Axial backlash: +/- 0,5mm, generally length tolerance +/- 1mm



WEIGHT OF THE ACTUATORS:

 Stroke length [mm]
 50     100     150     200     250     300     350     400     500     750
 Weight [kg] 4,1 4,4 4,7 5 5,3 5,6 5,9 6,2 6,8 7,6



Actual weight may vary depending on model and options selected.

CONNECTING PARTS "MOTOR-SIDE":
HINGE EYE

Saranasilmä1 e60 i

Aluminium
Code: A3M
Maximum static load: 16800N

Stainless steel (316)
Code: C3M
Maximum static load: 16800N



CONNECTING PART "PISTON-ROD-SIDE":
HINGE EYE

Saranasilmä2 e60 i

Aluminium
Code: A3K
Maximum static load: 16800N

Stainless steel (316)
Code: C3K
Maximum static load: 16800N





FOR THE FIXATION OF THE EASYE-LINE ACTUATORS WE OFFER THE FOLLOWING BRACKETS:

Eel900ba60 1ks

EEL900BA60-1KS

Piston rod side
Max. load: 5.000N
Order No.: EEL900BA60-1KS






Eel900ba60 1ms

EEL900BA60-1MS

Motor side
Max. load: 5.000N
Order No.: EEL900BA60-1MS








RECOMMENDED MOUNTING METHODS:

  • Do not clamp actuators on tubing
  • Always keep both brackets mounted in the same orientation and ensure to flush mount actuator
  • Brackets must always be able to rotate on axels in mountings
  • Avoid radial forces at all times



Easye asennus

PLEASE NOTE

  • Never expose the actuator to hammer strike during installation or in other situations
  • Retrofitted bushings should be pressed into the bracket-borings. No hammering
  • Power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded in another way
  • Keep piston tube clean
  • Longer cable lengths may cause voltage drop which affects the performance of the actuator
  • Function of the actuator is subject to the settings of the control box
  • The dust and water sealing of harsh environment actuators might affect their performance
  • All specifications are for 25 ºC ambient – low temperature might affect performance
  • Depending on load and application, nominal and actual stroke length may differ due to internal disc springs not being fully compressed.

EasyE-I installation and programming of the Integrated Controller.



EASYE-I:N ISTALLATION
Download PDF file here.



PROGRAMMING THE INTEGRATED CONTROLLER
You can download software for integrated control programming here.
