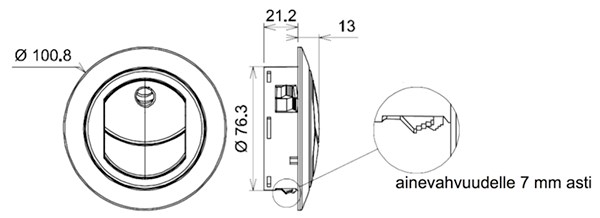

Rotating Klik® system with dampers. Air vent supplied without adapter. Adapter available separately for 40–70mm air pipes. Material thickness of installation surface 0–7mm.

Product code	Air channel Ø mm	Mounting hole Ø mm	Installation depth mm
440100		76	21
440015	45	76	21+27
440098	45	76	21+59
440014	55	76	21+27
440154	60	76	21+27
440153	70	76	21+27

Products

Vinkki! Avaa

-ikonista tuotteen lisätiedot ja lisää halutessasi ostoskoriin.

Product number	Name	Material	Package size	Height	Net weight	Outer Ø	Colour	Product card	Add to request for quotation

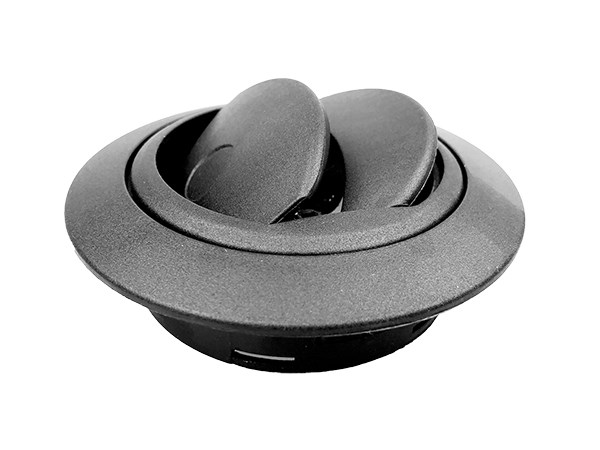

440100	Air vent KA Ø 100.8mm, without adapter	PA6.6+GF30	1pcs	21,2mm	25g	100,8mm	Black		PCS Add Added for request for quotation Failed to add to cart

Related products

Vinkki! Avaa

-ikonista tuotteen lisätiedot ja lisää halutessasi ostoskoriin.

Product number	Name	Material	Package size	Height	Net weight	Add to request for quotation
440015	Air vent adapter KA/KB/KG straight, air channel Ø 45mm	PA6.6+GF50	1pcs	27,4mm	18g	PCS Add Added for request for quotation Failed to add to cart
440098	Air vent adapter KA/KB/KG 18° angle	PA6.6+GB30	1pcs	59,2mm	35g	PCS Add Added for request for quotation Failed to add to cart
440014	Air vent adapter KA/KB/KG straight, air channel Ø 55mm	PA6.6+GF50	1pcs	27,4mm	18g	PCS Add Added for request for quotation Failed to add to cart
440154	Air vent adapter KA/KB/KG straight, air channel Ø 60mm	PA6.6+GF50	1pcs	27,4mm	15g	PCS Add Added for request for quotation Failed to add to cart
440153	Air vent adapter KA/KB/KG straight, air channel Ø 70mm	PA6.6+GF50	1pcs	27,4mm	20g	PCS Add Added for request for quotation Failed to add to cart
